Deadman Anchors

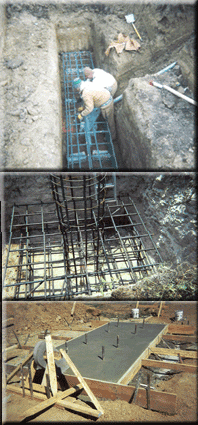

The deadman anchor is a foundation design used for guy towers along with a pad and pier or mat design for the tower’s base. Excavation, carpentry, concrete and reinforcing steel skills are required to provide a safe, as-designed installation.

Using the correct loading, a structural analysis of the tower must be provided with base reactions in order for an engineer to provide a foundation design. A geotechnical/soil report is normally required in order to obtain sealed design drawings for a building permit.

Although the specifications will provide you with the reinforcing steel sizes and placement, concrete PSI requirements and the foundation sizes, the excavation and formwork requirements are to be designed by the contractor. A few deadman anchor designs will have the anchor rod encased in concrete. Taller towers may require three sets of anchors. Cathodic protection may be required.

Quick QuoteThe default pricing is a baseline of averages throughout the country for deadman anchors and a tower base foundation in normal soil within 120 miles of the contractor’s office. The total includes excavation, forming materials, reinforcing steel, 3000 PSI concrete  and installation. The size of the foundation will influence the cubic yard pricing provided. Prices will vary based upon soil conditions, location and additional design requirements. Add concrete testing  to your proposal. If your bid documents require you to provide a proposal using "normal soil" conditions, try to get the owner to provide soil borings with a report to ensure a competitive bid environment.

Deadman Anchor Foundations

Mat with Deadman Anchors (3) In "My Estimator" enter the square of the mat and its depth, and the length, width and depth of the anchor block for total cubic yards and average baseline pricing.
Mat with Deadman Anchors (6) In "My Estimator" enter the square of the mat and its depth, and the length, width and depth of the inner and outer anchor blocks for total cubic yards and average baseline pricing.
Pad & Pier with Deadman Anchors (3) In "My Estimator" enter the pier’s square and its depth, and the length, width and depth of the anchor block for total cubic yards and average baseline pricing.
Pad & Pier with Deadman Anchors (6) In "My Estimator" enter the pier’s square and its depth, and the length, width and depth of the inner and outer anchor blocks for total cubic yards and average baseline pricing.

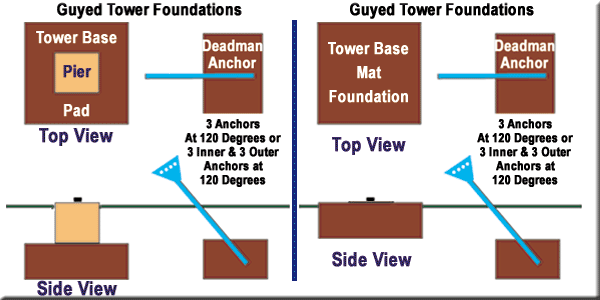

guyed tower foundations

We recommend that you contact our listed foundation installation companies to obtain additional information about their services, capabilities and experience.



Print This Page

Check Pricing

Whenever you receive a quotation from a contractor that appears to be too low, identify if they have the proper insurance, safety training and the expertise to complete the job. Oftentimes they don’t! If a supplier’s or service provider’s pricing is also extremely low, ensure that the materials and/or design meet the specifications or that they’re competent in providing their service offerings. Check references at least twice and you’ll only have to cut the purchase order once! To add information to this industry topic or to ensure its accuracy, please contact us at info@wirelessestimator.com.
