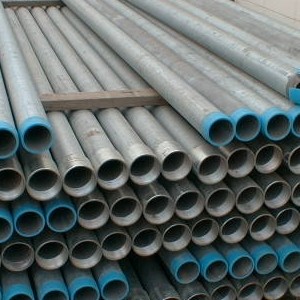

Rigid Galvanized ConduitRGS Schedule 40 Conduit-

Pipe size is always described and ordered in terms of its inside diameter. Therefore, a 1” rigid galvanized pipe has a 1” diameter. This is the “nominal” size; it is not meant to be exact.

Electrical conduit is hot-dipped galvanized inside and out and it is typically top-coated with a compatible organic layer to inhibit white rust and increase corrosion resistance.

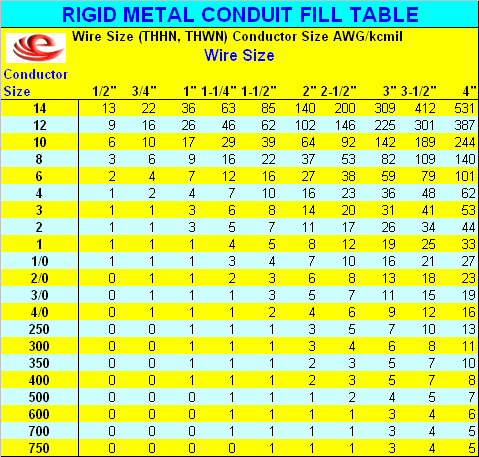

You should identify whether the specified conduits on the plans will accommodate the power source required. See the conduit fill table below.

CalculatorThe default pricing below (under 200') for the rigid galvanized conduit includes a coupling and is what the contractor should expect to pay to a distributor. Pricing is adjusted for longer runs. It does not include taxes and freight. Round up to the nearest 10 feet when entering your total length. The pricing is an average of multiple suppliers and may be higher or lower in some markets.

Schedule 40 Rigid Metal Galvanized Conduit

10' Lengths, Threaded With Coupling

Nom Pipe Size (in) Outside Dia. (in) Outside Dia. (mm) Inside Dia. (in) Inside Dia. (mm) Wall Thick-ness (in) Weight (lbs) Average Price
1/2 0.84 21.34 0.62 15.8 0.104 8.2

$16.63

3/4 1.05 26.67 0.82 20.93 0.107 10.9

$19.54

1 1.32 33.4 1.05 26.64 0.126 16.1

$31.09

1-1/4 1.66 42.16 1.38 35.05 0.133 21.8

$41.71

1-1/2 1.9 48.26 1.61 40.89 0.138 26.3

$48.63

2 2.38 60.33 2.07 52.5 0.146 35

$61.75

2-1/2 2.88 73.03 2.47 62.71 0.193 55.9

$109.61

3 3.5 88.9 3.07 77.93 0.205 72.7

$142.42

3-1/2 4 101.6 3.55 90.12 0.215 88

$169.97

4 4.5 114.3 4.03 102.26 0.225 103

$191.59



Couplings

Size (in) Description Weight Average Price (ea)
(lbs)
1/2 Schedule 40 Rigid Metal Galvanized Coupling 0.12

$0.63

3/4 Schedule 40 Rigid Metal Galvanized Coupling 0.17

$0.75

1 Schedule 40 Rigid Metal Galvanized Coupling 0.30

$1.13

1-1/4 Schedule 40 Rigid Metal Galvanized Coupling 0.40

$1.41

1-1/2 Schedule 40 Rigid Metal Galvanized Coupling 0.55

$1.77

2 Schedule 40 Rigid Metal Galvanized Coupling 0.68

$2.34

2-1/2 Schedule 40 Rigid Metal Galvanized Coupling 1.68

$5.81

3 Schedule 40 Rigid Metal Galvanized Coupling 2.10

$7.51

3-1/2 Schedule 40 Rigid Metal Galvanized Coupling 3.40

$10.08

4 Schedule 40 Rigid Metal Galvanized Coupling 3.84

$12.32



We recommend that you contact our valued electrical manufacturers and distributors for your site-specific rigid conduit requirements.






Check Pricing

Whenever you receive a quotation from a contractor that appears to be too low, identify if they have the proper insurance, safety training and the expertise to complete the job. Oftentimes they don’t! If a supplier’s or service provider’s pricing is also extremely low, ensure that the materials and/or design meet the specifications or that they’re competent in providing their service offerings. Check references at least twice and you’ll only have to cut the purchase order once! To add information to this industry topic or to ensure its accuracy, please contact us at info@wirelessestimator.com.
